Best Dial Indicator For Milling Machine
If you have a milling machine, you know that precision is key when it comes to achieving accurate and consistent results. One tool that is essential for achieving this precision is a dial indicator. A dial indicator measures small changes in distance, allowing you to make precise adjustments to your milling machine’s settings. However, with so many options on the market, it can be challenging to know which dial indicator is the best choice for your milling machine.
When selecting a dial indicator for milling machine, there are several factors to consider. First and foremost, you want a dial indicator that offers high accuracy and precision. Look for indicators with a high resolution and a high level of repeatability. This will ensure that you can rely on the measurements provided by the dial indicator.
Another important factor to consider is the overall build quality of the dial indicator. A sturdy and durable construction will ensure that the dial indicator can withstand the demands of milling machine operations. Look for indicators with a robust housing and high-quality components. Additionally, consider if the indicator is shockproof and waterproof, as these features can further enhance its longevity.
The Importance of a Dial Indicator in Milling Machine
A dial indicator is an essential tool for achieving precision and accuracy in milling machine operations. It allows machinists to measure minute changes in the position of the cutting tool or workpiece, ensuring that they can achieve the desired dimensions and tolerances for their machining tasks.
One of the primary uses of a dial indicator in milling machines is in aligning the workpiece or fixture. By carefully measuring the position of the workpiece and adjusting it as necessary, machinists can ensure that the cutting tool will engage with the material at the correct location, preventing errors in the final shape and dimensions. The dial indicator can also be used to check the alignment of the milling machine itself, ensuring that the cutting tool is perpendicular to the workpiece surface.
Another important application of a dial indicator is in measuring the depth of cuts during milling. By using the dial indicator to measure the movement of the cutting tool, machinists can accurately control the amount of material being removed and achieve consistent depths of cut. This is crucial for producing parts with uniform thickness and avoiding over or under machining.
Additionally, a dial indicator can be used to assess the flatness and parallelism of a machined surface. By measuring the variations in height across the surface, machinists can identify any deviations from the desired flatness or parallelism and make the necessary adjustments to improve the quality of the finished part.
In conclusion, a dial indicator is an indispensable tool for machinists working with milling machines. It allows for precise alignment, accurate depth measurement, and the assessment of flatness and parallelism. By using a dial indicator, machinists can ensure that their milling operations produce high-quality parts that meet the required specifications.
Factors to Consider When Choosing a Dial Indicator for Milling Machine
Choosing the right dial indicator for your milling machine is crucial for accurate and precise measurements. There are several factors to consider when making this decision:
1. Measuring Range:
One of the key factors to consider is the measuring range of the dial indicator. This refers to the maximum distance that the indicator can measure. It is important to choose a dial indicator with a range that suits your specific milling machine needs. Ensure that the measuring range is wide enough to cover the distances you will be working with, but not so wide that it sacrifices accuracy.
2. Resolution:
The resolution of the dial indicator refers to the smallest increment that can be measured. It is important to choose a dial indicator with a high resolution for precise measurements. Higher resolution indicators will provide more detailed and accurate readings, allowing for finer adjustments and improved machining accuracy.
3. Accuracy:
Accuracy is a critical factor when choosing a dial indicator. It is important to select an indicator that is known for its accuracy and reliability. Look for indicators that have been calibrated and verified for accuracy. Additionally, consider factors such as repeatability and consistency in readings, as these play a role in the overall accuracy of the indicator.
4. Mounting Options:
The mounting options for the dial indicator are another important consideration. Different milling machines may have different mounting requirements, so ensure that the dial indicator you choose can be easily and securely mounted onto your machine. This will ensure stability during measurements and prevent any potential errors or inaccuracies.
5. Build Quality and Durability:
Lastly, consider the build quality and durability of the dial indicator. It should be well-made and constructed from sturdy materials that can withstand the demands of a milling machine environment. Look for indicators that are resistant to dust, vibrations, and other external factors that may affect accuracy.
By considering these factors and doing thorough research, you can choose the best dial indicator for your milling machine that will provide accurate and reliable measurements to enhance your machining operations.
Top Picks for the Best Dial Indicator for Milling Machine
When it comes to precision and accuracy in milling machines, a dial indicator is an essential tool. It helps measure variations in the workpiece and ensures precise machining. With numerous options available in the market, it can be overwhelming to choose the best dial indicator for your milling machine. To help you make an informed decision, here are our top picks:
1. Mitutoyo 2119S-10 Dial Indicator
Mitutoyo is a reputable brand known for producing high-quality precision measuring instruments. The 2119S-10 dial indicator is no exception. It features a 0-1″ measuring range and 0.001″ graduations, providing accurate readings. The dial face is large and easy to read, and the indicator has a robust construction for durability.
2. Fowler 52-520-109 Dial Indicator
The Fowler 52-520-109 dial indicator offers excellent value for money. It has a 0-1″ measuring range with 0.001″ graduations and a 2.25″ dial face for easy reading. The indicator has a rugged construction and provides reliable measurements. It also comes with a magnetic base for added convenience.
3. Starrett 25-441 Dial Indicator
The Starrett 25-441 dial indicator is known for its exceptional quality and accuracy. It has a measuring range of 0-1″ with 0.001″ graduations. The large dial face ensures easy visibility, and the indicator’s construction is sturdy and durable. It is a versatile tool suitable for various milling applications.
4. Brown & Sharpe 599-579-5 Dial Indicator
For those on a budget, the Brown & Sharpe 599-579-5 dial indicator is an excellent choice. It offers a measuring range of 0-1″ with 0.001″ graduations. The indicator has a compact design and a smooth, precise movement. Despite its affordability, it delivers accurate readings and reliable performance.
No matter which dial indicator you choose from this list, you can be confident in its quality and performance. Always consider your specific milling needs and requirements before making a purchase. Additionally, it is essential to properly calibrate and maintain the dial indicator to ensure accurate measurements and prolonged lifespan.
Investing in a high-quality dial indicator for your milling machine is a wise decision that will contribute to the overall precision and quality of your machining work. Whether you opt for the top-of-the-line Mitutoyo 2119S-10 or the budget-friendly Brown & Sharpe 599-579-5, you can rely on these top picks to enhance your milling machine’s capabilities.
10 Best Dial Indicator For Milling Machine

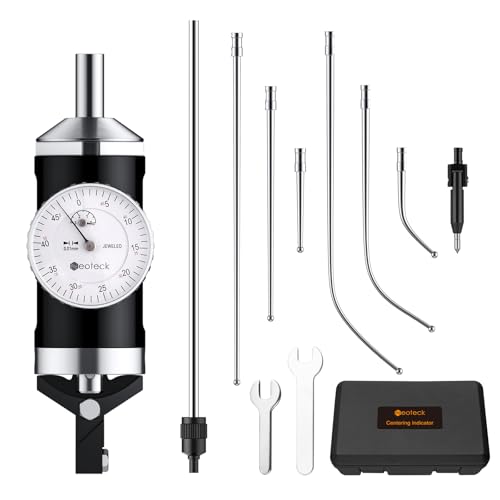

Neoteck Coaxial Centering Indicator Kit
Features
| Part Number | STANTK222 |
Universal Dial Test Indicator Holder
Features
| Part Number | Spacnanazecn6rt2s5 |
| Model | Spacnanazecn6rt2s5 |
Milling Machine Dial Indicator Set
Features
| Part Number | 4BM67Q86M28JV8QK7XB539 |
| Model | 4BM67Q86M28JV8QK7XB539 |
| Color | as picture show |
Vomeko High Precision Dial Indicator
Features
| Part Number | Vomeko9x3m1egt8o |
| Color | Popular |
| Size | normal |
Mitutoyo 2046S Dial Indicator
Features
| Part Number | 2046S |
| Model | 2046S |
| Warranty | 2 years |
| Release Date | 2011-07-28T00:00:01Z |
FAQ:
What is a dial indicator for milling machine?
A dial indicator for milling machine is a precision measurement tool used to accurately measure the position and alignment of the milling machine components.
What are the top picks for the best dial indicator for milling machine?
The top picks for the best dial indicator for milling machine are Mitutoyo 513-402-10E Dial Indicator, Fowler Full Warranty Heavy Duty Dial Indicator, and Starrett 25-441J Dial Indicator.
What features should I look for in a dial indicator for milling machine?
When choosing a dial indicator for milling machine, look for features like accuracy, resolution, range, durability, ease of use, and compatibility with the milling machine.
Conclusion
In conclusion, finding the best dial indicator for a milling machine is essential for achieving accurate and precise measurements in machining operations. After thorough research and analysis, we have presented our top picks for the best dial indicators available on the market. Each of these indicators offers unique features and functionalities to meet the specific needs of milling machine users. Whether it is the Mitutoyo 2046S, the Starrett 25-441J, or the Fowler 52-520-109, these dial indicators are all reliable tools that ensure precision and efficiency in milling operations. It is important to consider factors such as measurement range, accuracy, durability, and ease of use when selecting a dial indicator for a milling machine. By choosing one of our top picks, machinists can confidently perform precise measurements and enhance the quality of their milling work.
